Product overview

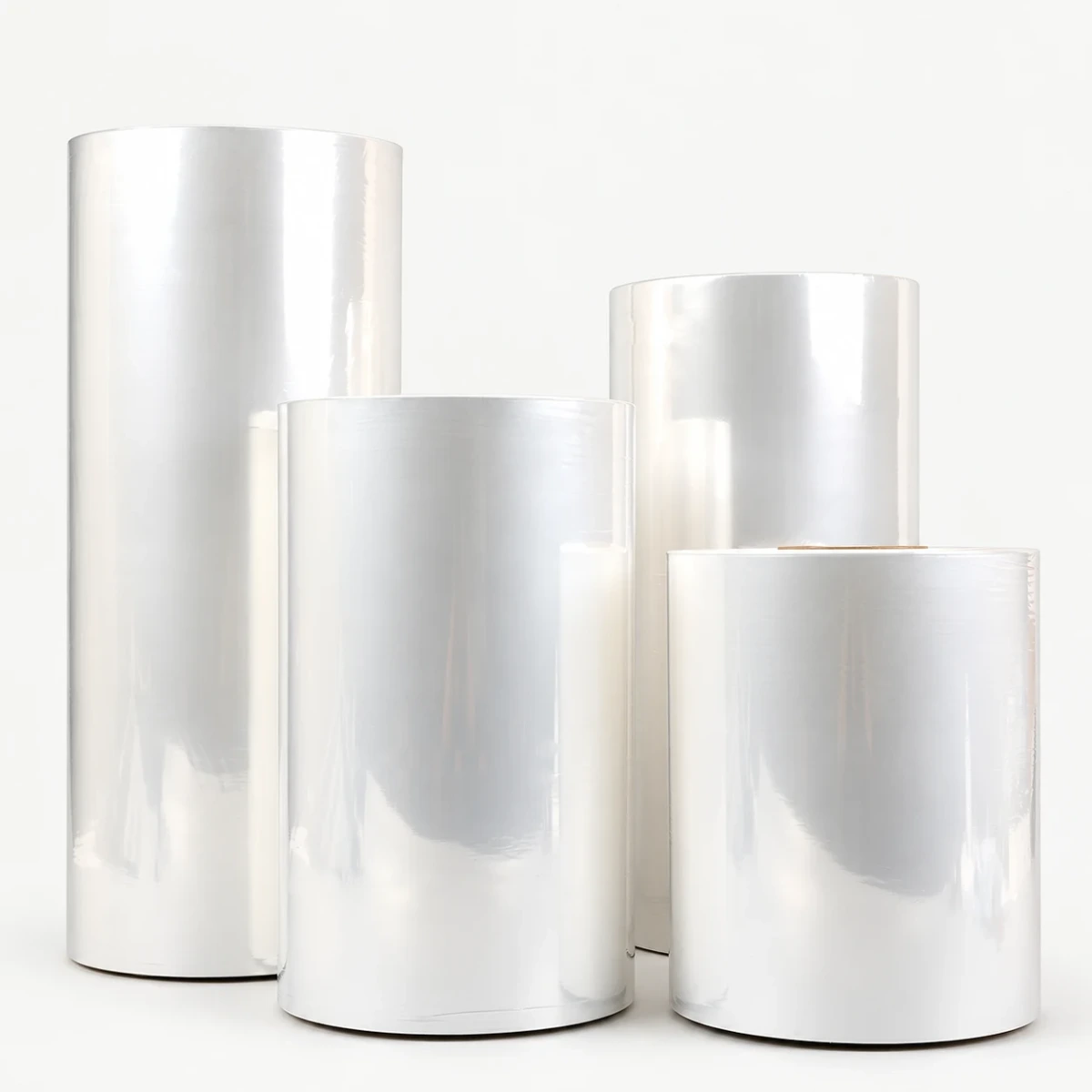

Zhongda® ZDF01 PCR is an eco-conscious polyolefin shrink film engineered with 30% post-consumer recycled content and GRS 4.0 certification. Built on the same proven process as ZDF01, it offers consistent mechanical strength, reliable heat sealing, high shrink performance and broad machine compatibility. Delivering the same high-quality packaging appearance and protection as standard films, it enables brands to achieve sustainability targets while maintaining production efficiency and professional shelf presentation, matching the performance of top-tier global PCR shrink film solutions.
Features
- Contains 30% post-consumer recycled material
- Based on the ZDF01 film process
- Reliable heat sealing and consistent mechanical performance
- Broad shrink-packaging machine compatibility
Technical specifications
Scroll the table horizontally to compare all thicknesses.
| Property | Specification |
|---|---|
| Nominal thickness (brochure) | 15 / 19 / 25 μm |
| Film type | PCR polyolefin shrink film |
| PCR content | 30% |
| Property | ASTM | Unit | 12 μm | 15 μm | 19 μm | 25 μm | 30 μm |
|---|---|---|---|---|---|---|---|
| Tensile strength (MD) | D882 | N/mm² | 120 | 115 | 110 | 90 | 88 |
| Tensile strength (TD) | D882 | N/mm² | 115 | 110 | 105 | 85 | 80 |
| Elongation (MD) | D882 | % | 105 | 105 | 110 | 105 | 100 |
| Elongation (TD) | D882 | % | 95 | 100 | 105 | 95 | 90 |
| Hot-wire seal strength (MD) | F88 | N/mm | 0.75 | 0.85 | 0.95 | 1.15 | 1.35 |
| Hot-wire seal strength (TD) | F88 | N/mm | 0.95 | 1.05 | 1.15 | 1.25 | 1.55 |
| Static COF, film to film | D1894 | — | 0.21 | 0.2 | 0.18 | 0.22 | 0.23 |
| Dynamic COF, film to film | D1894 | — | 0.22 | 0.2 | 0.18 | 0.22 | 0.23 |
| Clarity | D1746 | % | 94 | 93 | 92 | 91 | 90 |
| Oxygen transmission rate | D3985 | cc/m²/day | 10300 | 9200 | 8200 | 5600 | 4200 |
| Water vapor transmission rate | F1249 | g/m²/day | 30.5 | 25.9 | 17.2 | 14.5 | 11.2 |
Nominal thickness options are listed in the supplied product brochure. Film selection and machine settings depend on the product and packaging trial. Typical values are transcribed from the model-specific technical datasheet. MD = machine direction; TD = transverse direction. See the downloadable document for the full test data.
Applications

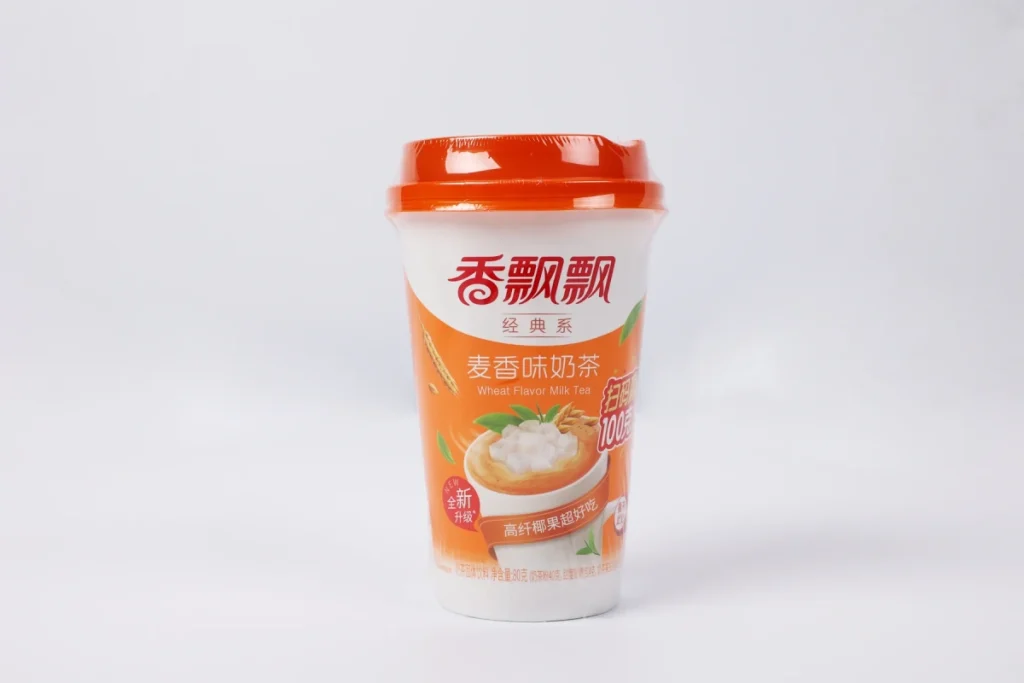

- Retail and consumer packaging

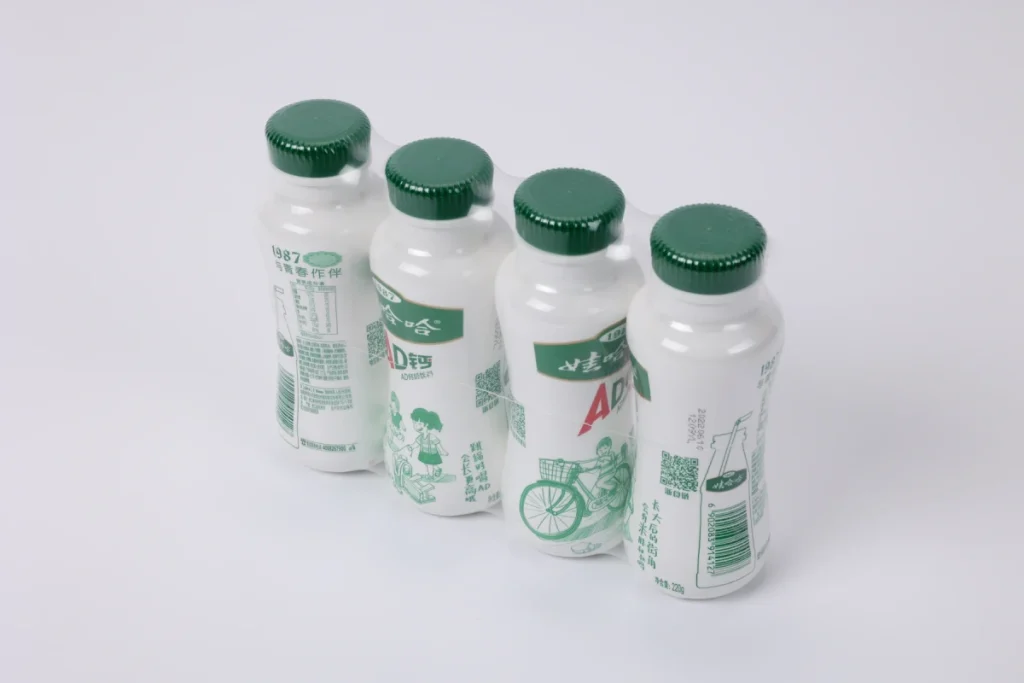

- Multipacks
- Packaging programs using recycled content
