Product overview
An automatic high-speed flow shrink wrapping machine for single-layer POF film. The supplied model range supports 30–150 packs per minute and product lengths from 100 to 450 mm.
Features
- High-speed automatic flow shrink wrapping
- Single-layer POF film feeding
- Matched sealer and shrink-tunnel arrangement
- Suitable for cup, carton and cylindrical retail products
Technical specifications
| Property | Specification |
|---|---|
| Packing capacity | 30–150 packs/minute |
| Film type | Single-layer POF film |
| Maximum film width | 720 mm |
| Product length | 100–450 mm |
| Product width | 40–190 mm |
| Product height | 35–75 mm |
| Sealer power supply | Single-phase 220 V / 50 Hz |
| Shrink tunnel power supply | 3-phase 380 V / 50 Hz |
| Maximum power | Sealer 5.5 kW; shrink tunnel 9 kW |
| Machine dimensions | Sealer 4930 × 1130 × 1500 mm; tunnel 2400 × 600 × 1550 mm |
| Weight | Sealer 1000 kg; tunnel 600 kg |
| Machine material | Carbon steel |
Specifications describe the supplied equipment configuration. Final dimensions, utilities and throughput depend on the selected model, product and packaging trial.
Applications

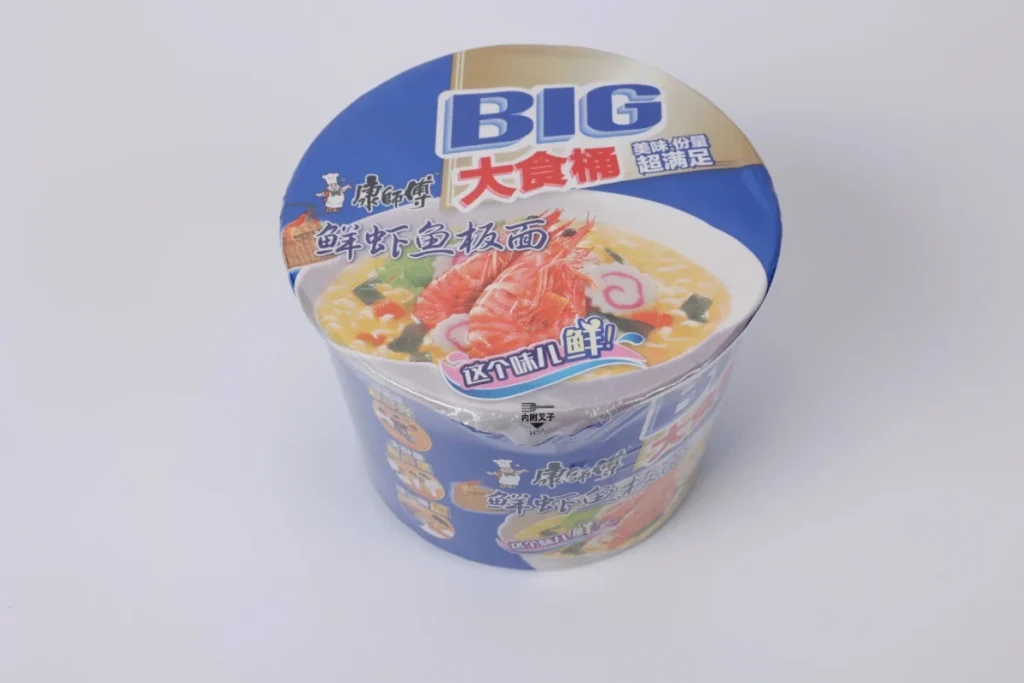

- Instant noodle cups and bowls

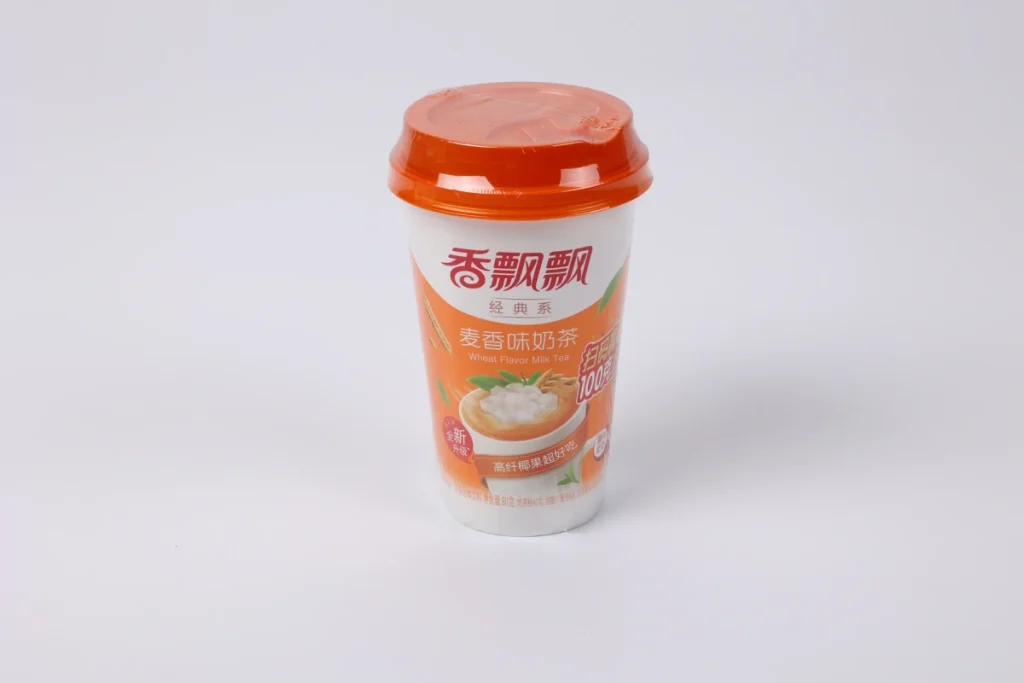

- Milk cups and cartons
- Cosmetic bottles, filters and wallpaper rolls
