Product overview

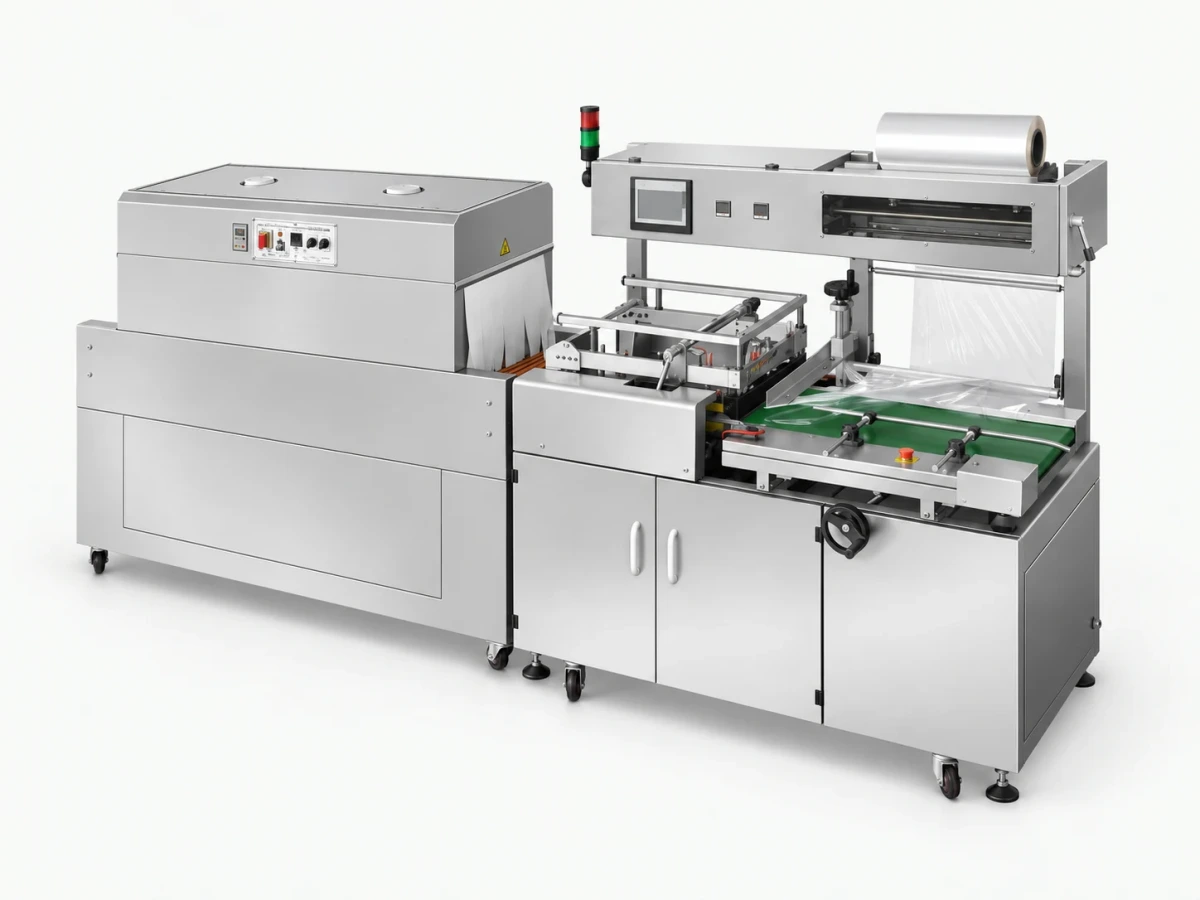

An automatic L-bar shrink packing machine for center-folded POF film, paired with a BMD-450B shrink tunnel. The supplied model supports 15–35 packs per minute depending on product size.
Features
- Automatic L-bar sealing with a matched shrink tunnel
- Touch-screen and PLC operation
- Alloy sealing knife with non-stick coating
- Stainless-steel construction
Technical specifications
| Property | Specification |
|---|---|
| Sealing type | L-bar sealing |
| Power supply | 380 V / 50–60 Hz / 3 phase |
| Packing capacity | 15–35 packs/minute (depends on product size) |
| Maximum sealing height | 125 mm |
| Maximum packing width | 350 mm |
| Product size limits | Width + height ≤ 400 mm; length + height ≤ 480 mm |
| Film type | Center-folded POF film |
| Maximum film roll | 530 mm width × 280 mm outer diameter |
| Sealer power | 1.5 kW |
| Working height | 780–850 mm |
| Air pressure | ≤ 0.5 MPa (5 bar) |
| Machine material | Stainless steel |
| Sealer weight | 350 kg |
| Matched tunnel | BMD-450B; maximum 7 kW; 200 kg |
Specifications describe the supplied equipment configuration. Final dimensions, utilities and throughput depend on the selected model, product and packaging trial.
Applications
- Food and stationery
- Cosmetics and electronic products
- Toys and boxed goods
