Product overview

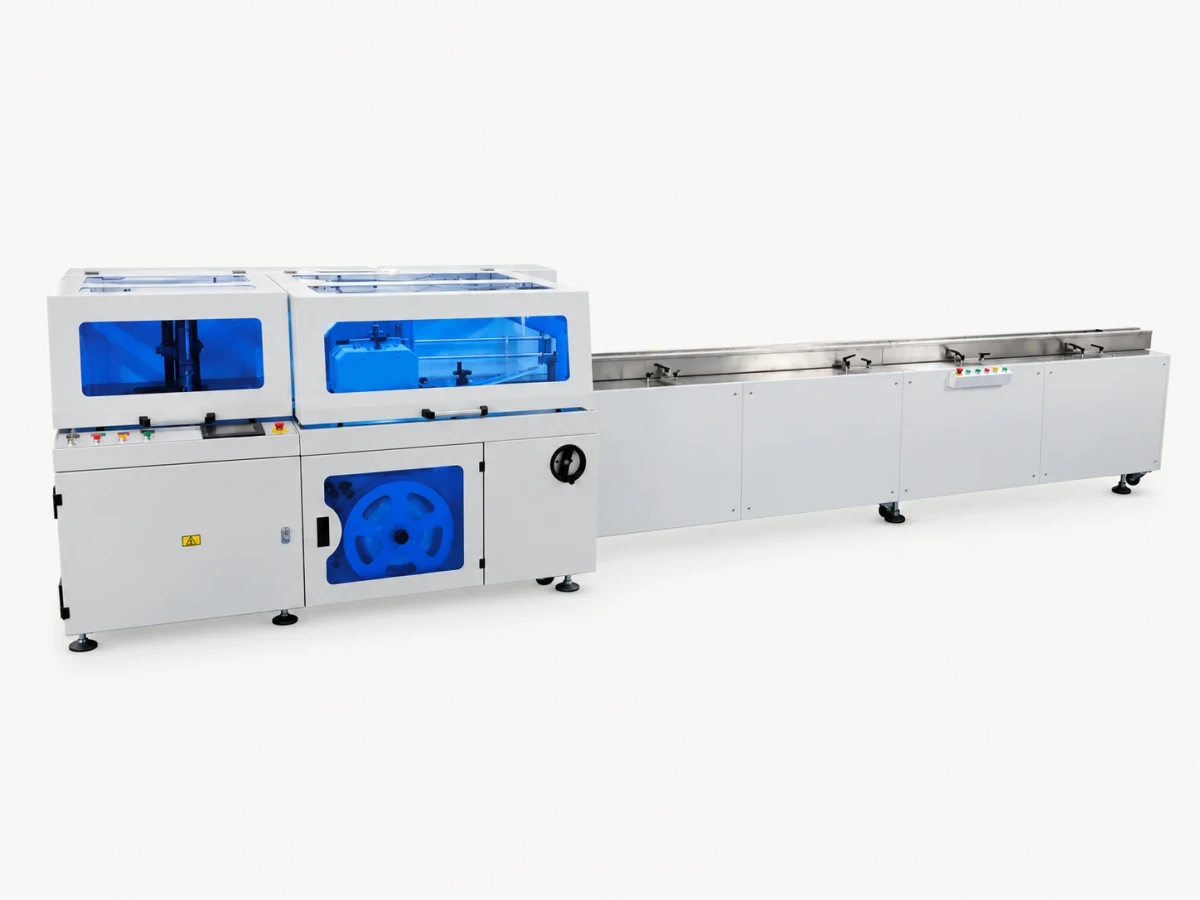

An automatic continuous side-sealing shrink packing machine for center-folded POF film. The supplied ZL-LZ-B-400 model supports 80–120 packs per minute with a matched ZF-S550-LH shrink tunnel.
Features
- Continuous side sealing for automatic wrapping
- Reciprocating high-speed end sealing
- Twin pressure-wheel side seal system
- Matched tunnel with variable conveyor speed
Technical specifications
| Property | Specification |
|---|---|
| Sealing type | Automatic continuous side sealing |
| Power supply | 220 V / 50 Hz |
| Packing capacity | 80–120 packs/minute |
| Product length | 70–500 mm |
| Product width | 60–400 mm |
| Product height | 5–120 mm |
| Film type | Center-folded POF film |
| Maximum film roll | 650 mm width × 330 mm outer diameter |
| Sealer power | 8 kW |
| Working height | 850–900 mm |
| Sealer weight | 1850 kg |
| Matched tunnel | ZF-S550-LH; 380 V / 50 Hz; 14 kW; 600 kg |
Specifications describe the supplied equipment configuration. Final dimensions, utilities and throughput depend on the selected model, product and packaging trial.
Applications
- Boxes, books and cards
- Bottled liquids
- Consumer-goods multipacks
